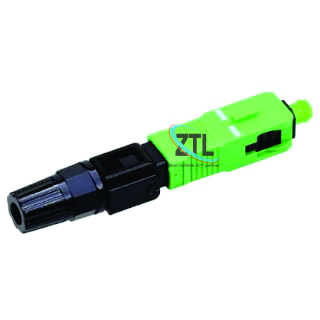

Fiber Optic Fast Connector SC/APC

Fiber Optic Fast Connector SC/APC Features

1. Factory price, can be reused
2. Accurate mechanical dimension: 55mm*8.9mm*7mm
3. Suitable for 3mm drop cable and 3x2mm flat cable
4. Using simple tools without electrical power, no special tools needed to install
5. Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
6. No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
7. Fiber aligned in v-groove through the ceramic ferrule
8. Low-volatile reliable matching liquid preserved by side cover
9. Unique bell-shaped boot maintains the minimum fiber bend radius

Applications

1. Telecom, CATV Network, Fiber to the home (FTTH)
2. Local Area Network (LAN), Wide Area Network (WAN)
3. Fiber Optic Distribution Frame, Patch Panel, ONU
4. Maintenance or emergency restoration of fiber network
