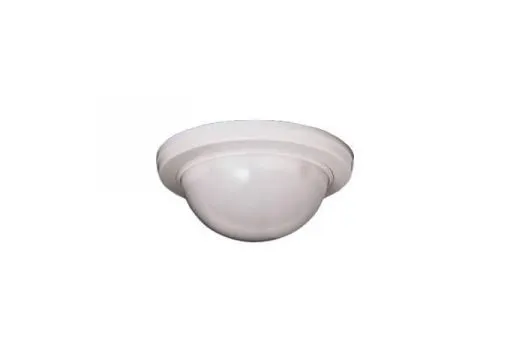

360 degrees SX-360Z Motion Sensor

0 Reviews
In stock

KSh 14,000.00

Buy now

Product details

Key Features of the 360 Degrees SX-360Z Motion Sensor:

  1. 360-Degree Coverage:
    • The SX-360Z provides 360-degree detection coverage, allowing it to monitor the entire area within its radius. This ensures that no movement goes unnoticed within the area it is installed.
  2. High Sensitivity:
    • The sensor is highly sensitive to motion, capable of detecting even small movements from a range of distances. The PIR technology used ensures that it responds accurately to changes in infrared radiation caused by human body heat.
  3. Wide Detection Range:
    • It offers a wide detection range (usually up to 10-15 meters), depending on the model. This makes it suitable for larger areas, providing ample coverage for security applications.
  4. Low False Alarm Rate:
    • The SX-360Z is designed to minimize false alarms by incorporating advanced filtering technology that can distinguish between human movement and other environmental factors, such as animals or air currents.
  5. Energy Efficient:
    • The sensor typically operates on low power and can be connected to power-saving systems, making it an energy-efficient solution for security installations.
  6. Adjustable Sensitivity and Range:
    • Some models allow the user to adjust sensitivity and detection range to meet specific needs. This feature provides greater flexibility in configuring the sensor for optimal performance.
  7. Tamper Protection:
    • The sensor may include features to protect against tampering, ensuring it continues to function properly in a security setup. This is important in preventing unauthorized individuals from disabling the sensor.
  8. Weatherproof and Durable:
    • Depending on the design, the sensor may be weatherproof, making it suitable for both indoor and outdoor use. This allows it to function effectively in various environmental conditions.
Technology Passive infrared
Installation Commercial, industrial, residential
Zones Interior
Detection Zones: 276
Coverage Ø 60′ (Ø 18 m), 360° zoom
Mounting Ceiling Height: 8.0 to 16.0′ (2.4 to 5.0 m)
Sensitivity 3.0°F (-16°C) at 2.0 ft/sec (0.6 m/sec)
Sensitivity Adjustment Low:ɸ 30 to 40′ (ɸ 9 to 12 m)Medium:

ɸ 40 to 50′ (ɸ 12 to 15 m)

High:

ɸ 50 to 60′ (ɸ 15 to 18 m)

Speed Detectable: 1 to 6 ft/sec ( 0.3 to 1.8 m/sec)
Indicators LED: Blinks during warm-up period
alarm condition
Alarm Period: 2.0 ±0.5 sec
Output: N.C, 28 VDC, 02.A maximum
Switch Tamper: N.C, opens when cover removed
Count Period Pulse: 2.0 ±5 sec, 1,2 or 4
Warm-Up Period Approximately 20 sec (LED blinks)
Wiring Wire Size:AWG22 (0.33 mm2)At 12 V: 1,070′ (320 m)

At 14 V: 2,140′ (650 m)

AWG20 (0.52 mm2)

At 12 V: 1,700′ (510 m)

At 14 V: 3,400′ (1,020 m)
AWG18 (0.83 mm2)

At 12 V: 2,700′ (820 m)

At 14 V: 5,300′ (1,600 m)

Power Input 6 to 18 VDC
Current Draw 13 mA (normal), 18mA (maximum)
RF Interference No alarm 30 V/m
Humidity 95% maximum
Operating Temperature -4 to 122°F (-20 to 50°C)
Diameter 5.04″ (128.00 mm)
Depth 2.46 to 2.88″ (67.00 to 73.00 mm)
Weight 8 oz (224 g)
